F3121

CNC Router MTech F3020 Pro

$11,000
434500 грн

Buy

Place the order





Working area: 3100х2100×250 mm
Spindle power: from 3kW
Speed: up to 25 m/s
Transmission mechanism: rack gear

Category:

Product Description

Description

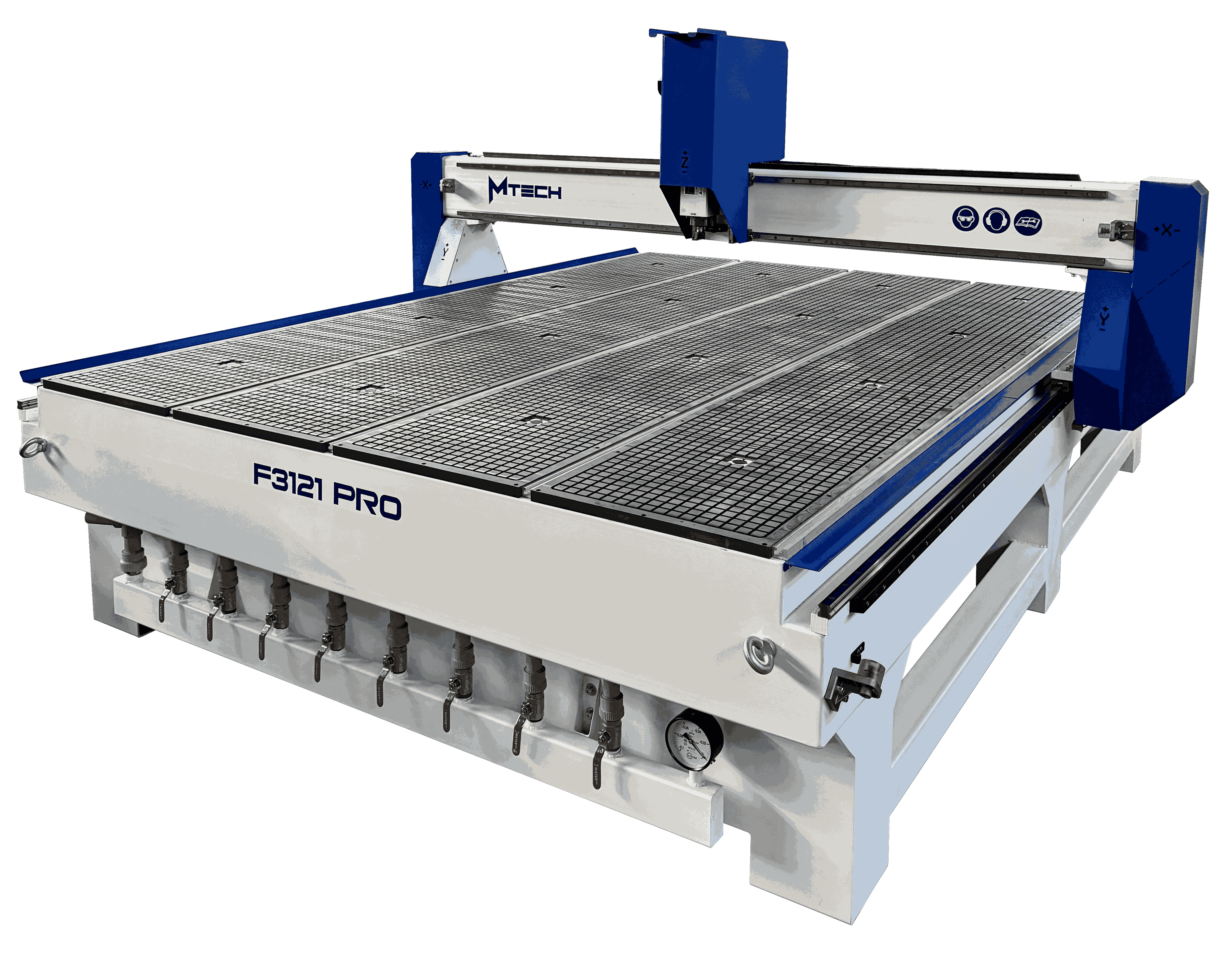

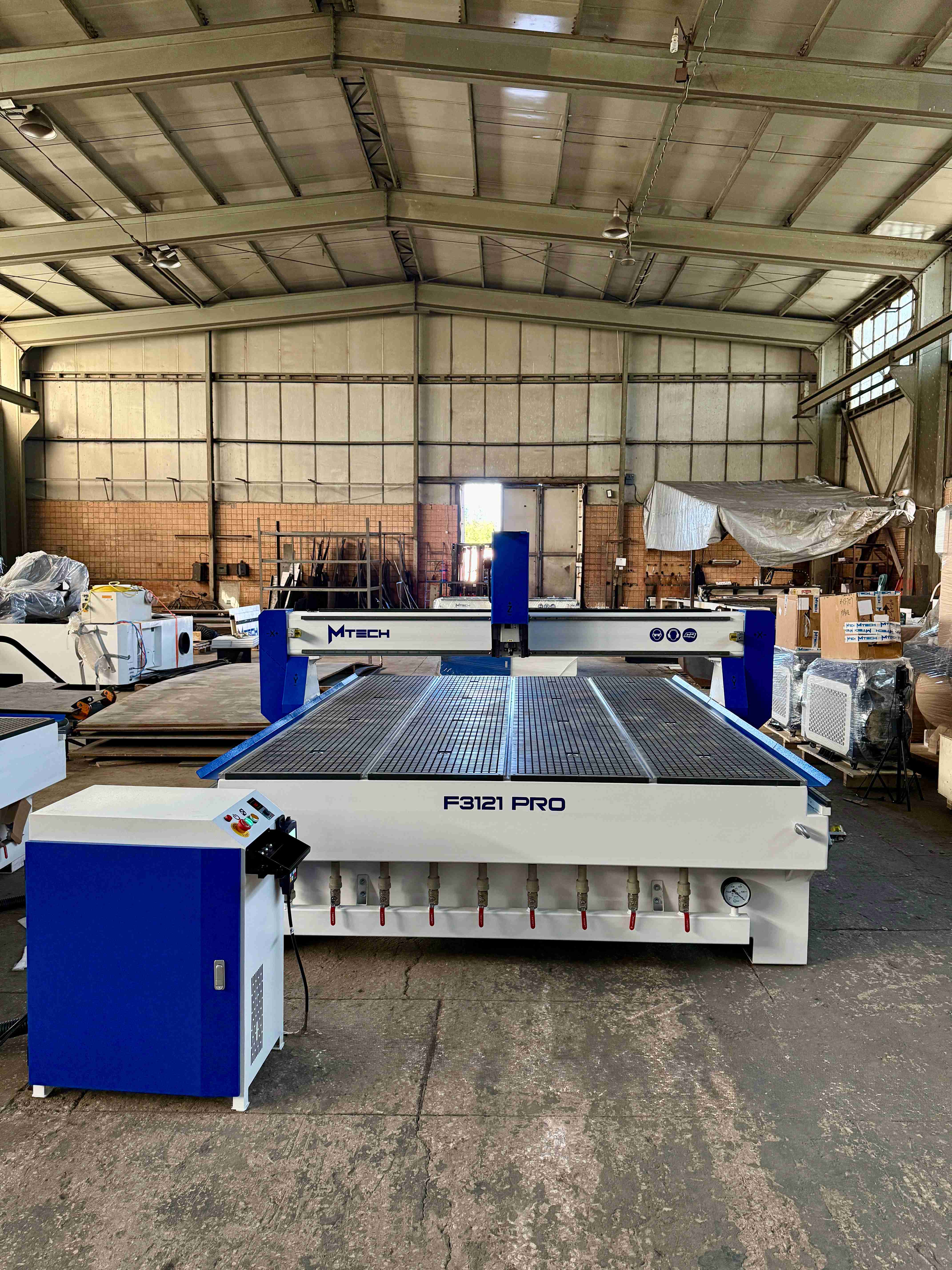

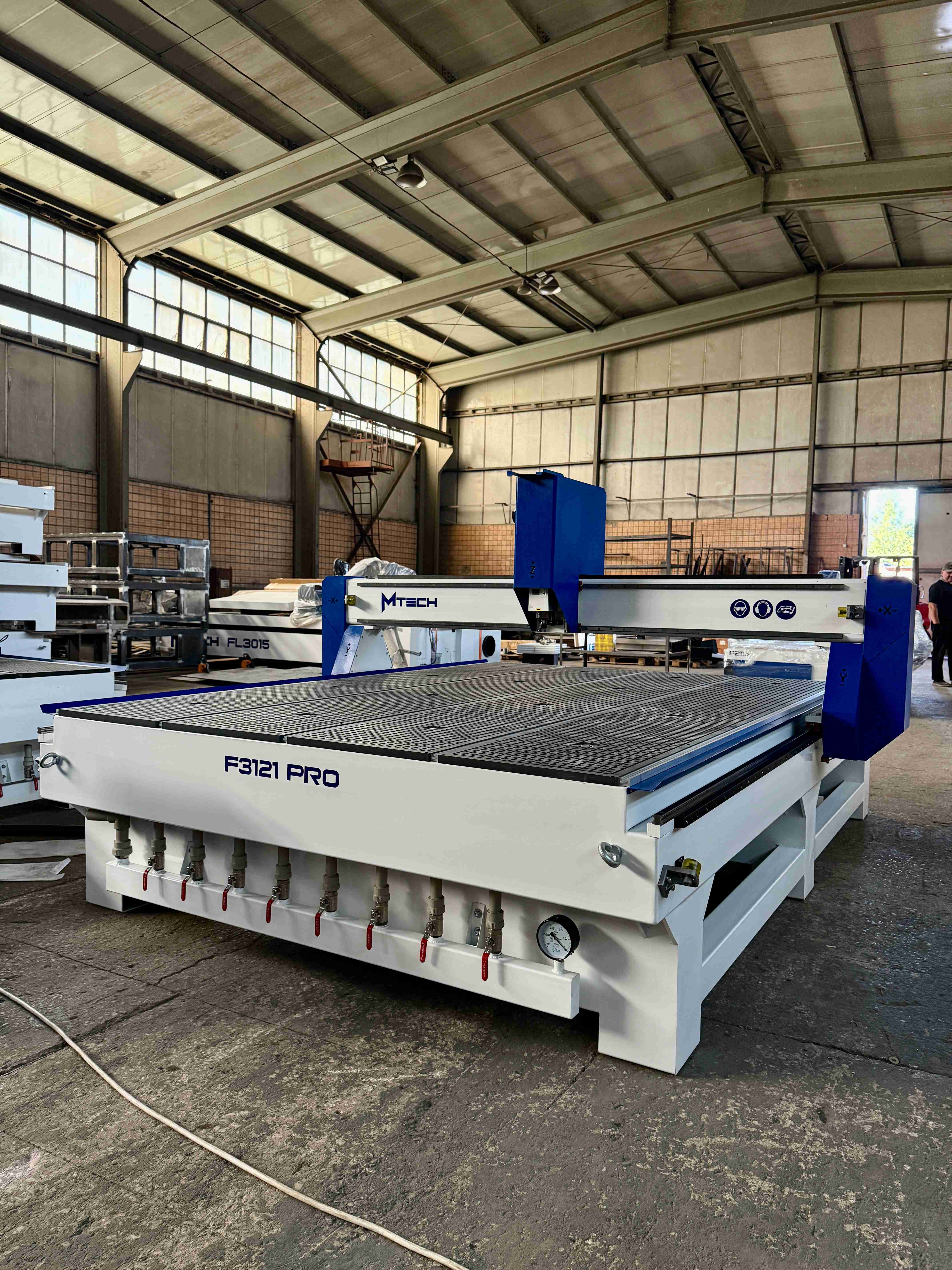

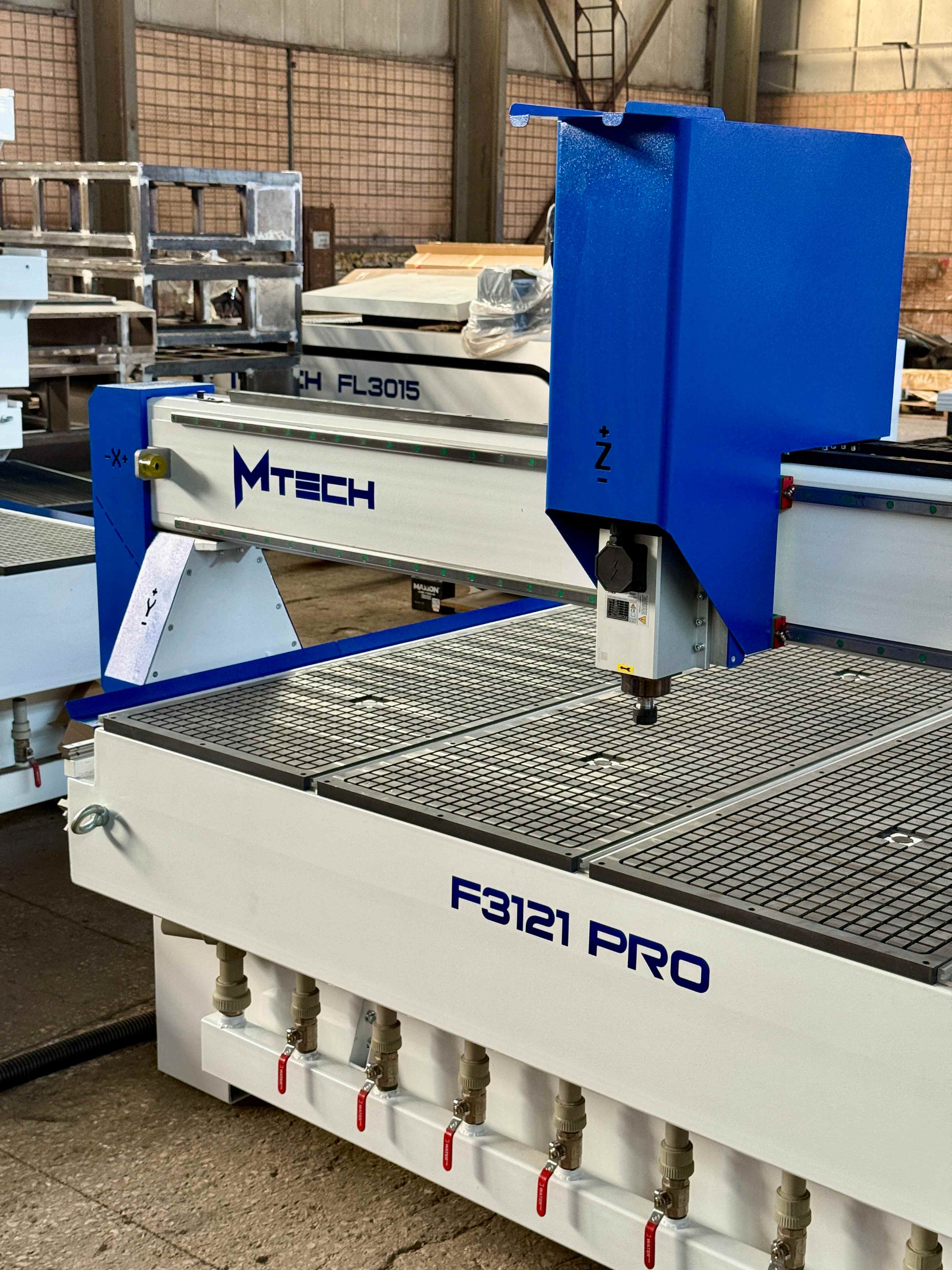

MTech F3020 Pro is a high performance CNC Router with a working area of 3100x2100x250 mm.

A distinctive feature of this CNC Router machine for wood and soft metal is a toothed rack on the X and Y axes, which provides an internal speed for tables of this size. Productivity, accuracy and powerful spindle makes this CNC Router universal tools in any workshop for the manufacture of promotional items, furniture, souvenirs, etc.

In the basic configuration, the machine uses a powerful 3500W spindle, Hiwin HGR20 square guides, auto-lubrication of guides, a table for vacuum and mechanical workpiece clamping, Richauto B11 DSP console and a number of other improvements.

Features of the Pro series

Reliable construction

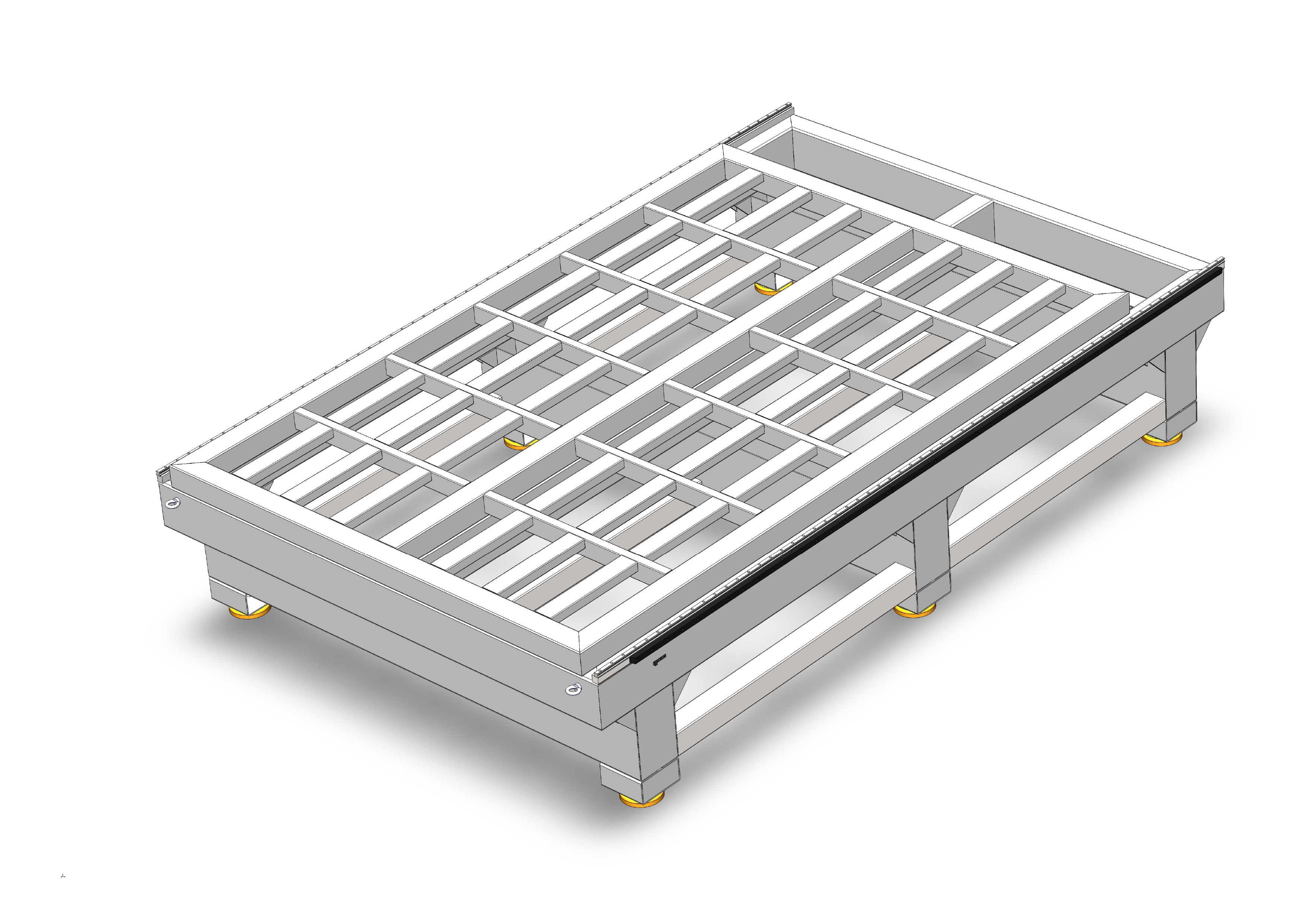

PRO series machines are manufactured from high-quality profile metal products up to 8 mm thick. Due to this, the frame is rigid and durable, which minimizes its deformation during operation.

Footprint processing

PRO series machines are manufactured from high-quality profile metal products up to 8 mm thick. Due to this, the frame is rigid and durable, which minimizes its deformation during operation.

High precision guides Hiwin

In the basic configuration, the PRO series are equipped with Hiwin HGR20 rail guides.

The HG series super-load profile rail guides, with four closed rows of balls, are 30% more powerful than comparable products in terms of load capacity and rigidity due to the optimized semicircular profile. The optimized design of the ball rotation mechanism gives the system a smooth ride.

Vacuum and mechanical clamping of the workpiece

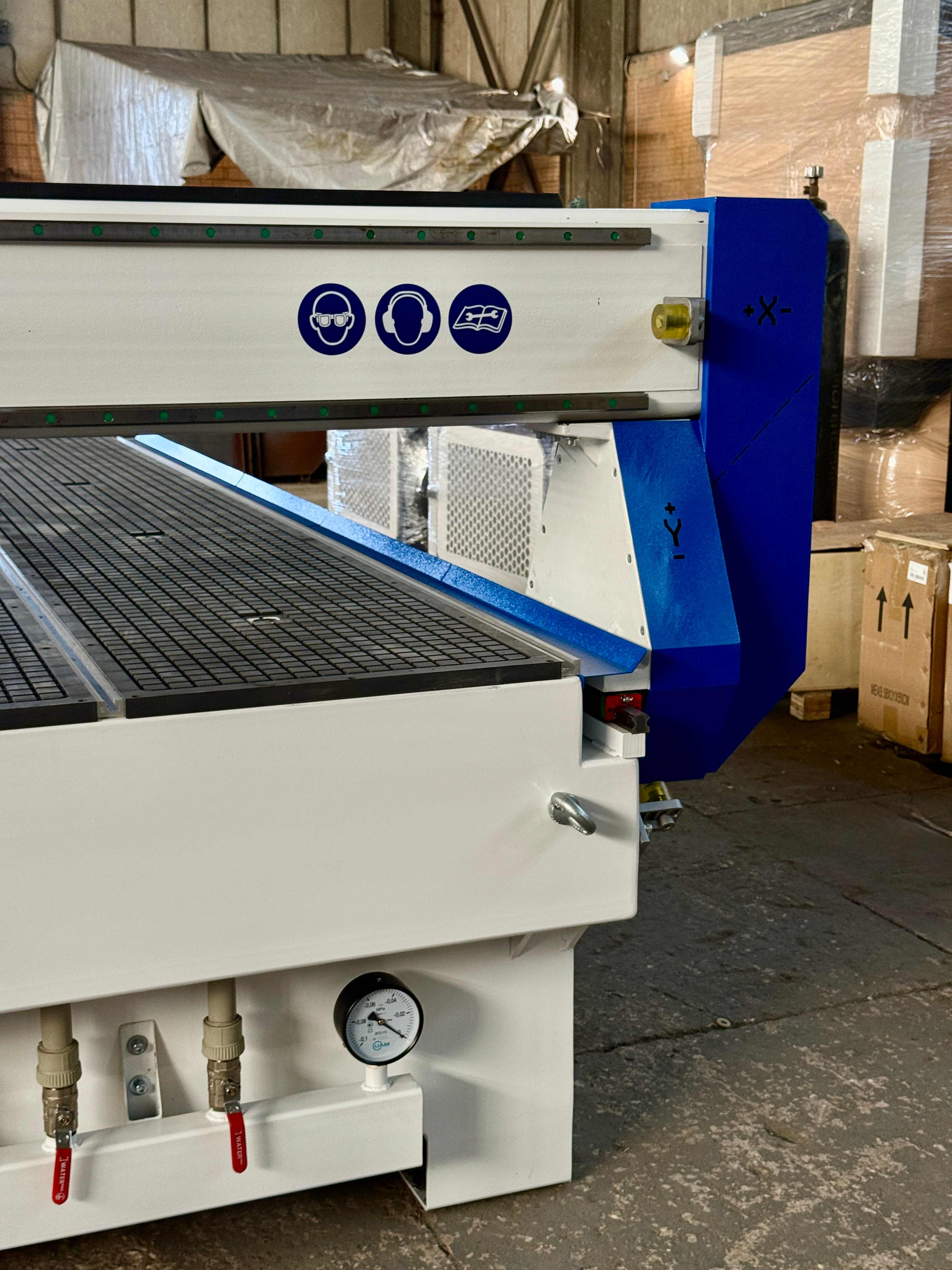

In addition, the machine is equipped with a vacuum clamp of material, which is a system of pipelines, distribution valves and vacuum channels on the working surface of the table. The machine is equipped with a vacuum pump as an option. The capacity of the vacuum pump is selected by our technicians according to the requirements for the clamping force of the material. For mechanical fixation of the material on the worktable, there are grooves for the installation of clamps.

Auto lubrication of guides

Optionally, an automatic centralized lubrication system for the guides and ball screws can be installed. It is the best solution for quick and convenient maintenance of linear bearings and ball screw nuts that require regular lubrication,

Parameters

Model F3020
Base all-welded, from thick-walled pipes
Working area: 3100*2100 mm
Z axis lenght 250 mm
Spindle power 3500 W
Spindle speed 0-18000 rpm
Spindle cooling air / water
Collet type ER20
Maximum tool diameter 13 mm
Maximum idle speed 0-25000 mm/m
Maximum working speed 0-20000 mm/m
Guides Hiwin HGR20
Transmission type Rack gear М1,25
Limit sensors Omron
Control system Richauto B11 with external control cabinet
Positioning Accuracy ±0,05 mm
Engine stepper, 86HS100-5004A 5А 1.8°, 67 kg/s
Drivers Leadshine DMA860D
Working table Vacuum table + mechanical clamp
Software Type3, Power Mill, ArtCam
Supported file formats G-code
Processed materials Wood, plastics, soft metals, other materials
Voltage 220 V
Frequency 50 Hz
Total power consumption  up to 4kW
Size of machine 3600*2600*1700mm
Weight ~2100 kg
Features
  • Chip cutter head
  • Guide rail protection
  • A set of 13 collets included
  • Tool length gauge
  • Processed seats for guides
  • Programmable automatic lubrication of guides
  • Wrench set included
